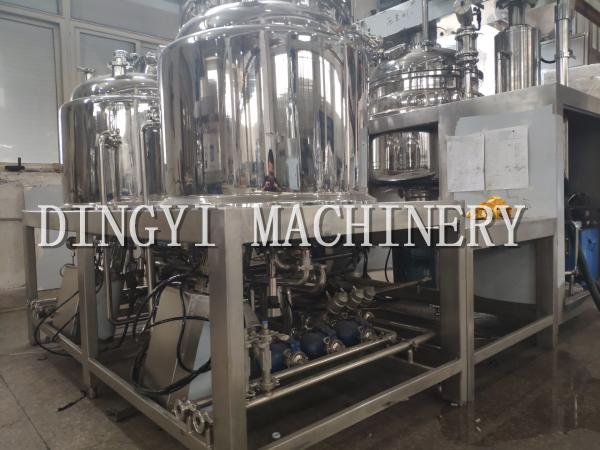

Powerful Vacuum Mixer Homogenizer / 350L Pharmaceutical Mixing
Equipment
Vacuum Mixer Homogenizer description
Main tank is made up of 304 or 316L stainless steel with mirror
polishing effect (Chamber 400MESH). Oil and water tanks are
optional.
1. The mixing system is designed for manufacturing cream, lotion,
syrup etc. with different features
2. The speed of mixing and homogenizing system can be adjusted
according the different process technologies
3. The digital time and temperature indicator are set on the
control cabinet. User will detect the working time and temperature
easily
4. Homogenizing is processed by CNC lathe and applies Japan and
German technology to achieve fine and smooth material
5. Vacuum system makes the whole operation in the vacuum condition
so that there are no bubbles in material.
6. Material suction from the bottom: small powder will suck by
button control, to ensure the powder homogenize and emulsify
evenly.
Vacuum Mixer Homogenizer Parameter
· Capacity:350L
· Material: material contact part SS316L, material non-contact part
SS304.
· Customized service: to provide and design total solution as per
customer URSWork elements
After the materials in the water pot and oil pot are heated and
mixed, the amterials are sucked into the emulsifying pot by the
vacuum pump, through the middle( Fixed) sitrrer and teflon scrapers
residues stirrer in the emulsifying pot that sweep the residues on
the wall of the vessel, so make the produces of wiped off become
the new interface constantly, then the balde cut off, compress,
fold roudn, mixing and running to the homogenizer , according to
the high shear wheel and the cutting case to strong cutting off,
impatct, without rules mobility, etc. The material by cutting in
the cut interstics and turn to a particle of 200nm-2um prompt,
because the emulfiying pot is under vacuum state, the bubble that
the supplier produce in the course of mixing is taken away in time!
Water and oil pre-mixing tank
· High shear mixer 960rpm or slow mixer 60rpm
· Heating by steam or electricity
· Pipeline for material transfer to main emulsifying machine
Vacuum system:
· Water ring type vacuum pump or oil type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump
After finish one batch, customer can choose positive pressure or
rotor pump for material out.
Vacuum Mixer Homogenizer Parameters
Model
| Capacity | Emulsifying motor | slow mixer motor | Machine dimension | Total power(KW) |
KW | RPM | KW | RPM | LENGTH | WIDTH | HEIGHT | Lifting hight |
| ZRJ-500 | 500L | 7.5 | 1150-3500 | 2.2 | 10-40 | 4000 | 2800 | 2700 | 4000 | 17.6 steam heating |
| ZRJ-350 | 350L | 7.5 | 1150-3500 | 2.2 | 10-40 | 3700 | 2650 | 2550 | 3600 | 29.3 steam heating |
