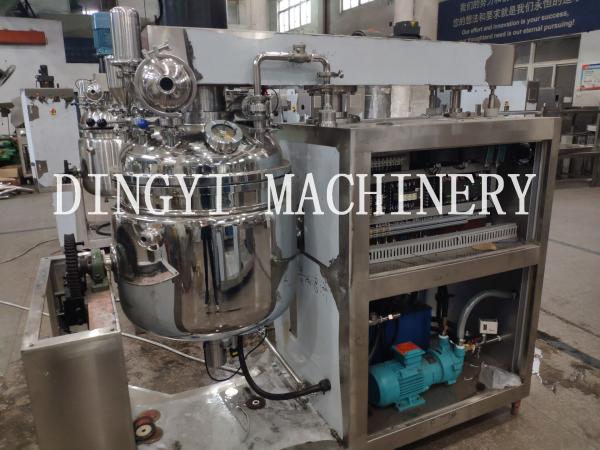

SS316L Cosmetic Mixer Equipment , Large Capacity Vacuum Mixer Homogenizer

Cosmetic Mixer Equipment Feature

1, The mixing adopts the imported frequency inverter for speed adjustment,which can meet different technological demands.

2, The homogenizing structure is made through German techology. The machine adopts the improted double-end mechanical seal effect. The maximum emulsifying rotation speed can reach 3500rpm and the high shearing fineness can reach 5um.

3, The vacuum defoaming can make the materials meet the requirement of being aseptic . The vacuum materials vacuum sucking can avoid dust.

4, The main boiler lid can adopt lifting system, it is easy to clean and the cleaning effect is more obvious, the main boiler can adopt tilting discharge.

5, The boiler body is welded with 3 layer imported SS plate, tank body and pipes adopts mirror polish whcih meet the GMP standard.

6, According to process requirement, the tank body can heating and cooling the electric heating.

7, To ensure the stability of whole machine, the machine adopt the imported electric appliances which can meet the international standards.

Cosmetic Mixer Equipment including:

· Vacuum emulsifying main machine
· Substrate dissolving tank and hot water tank with heat preservation
· Hot water circulating system
· Material auto feeding system(use heat preservation pipe )
· Vacuum system
· Hydraulic system
· Control system
· Platform made from SS304(option)

Cosmetic Mixer Equipment main machine:

· Homogenizer 0-3500rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.09Mpa to 0.1Mpa, jacket 0.3Mpa for hot water (standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.

Oil pre-mixing tank

· High shear mixer 960rpm
· Heating by hot water
· Pipeline for material transfer to main emulsifying machine

Vacuum system:

· Water ring type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump

Cosmetic Mixer Equipment Parameter

· Capacity:350L
· Material: material contact part SS316L, material non-contact part SS304.
· Customized service: to provide and design total solution as per customer URS

Options of Cosmetic Mixer Equipment

Fixed cover by flanges design for tight budget customers

Contra mixing part or other slow agitator designs available

Frame type slow agitator for oil pre-mixer

Delta, Schneider or Siemens PLC for automation of mixing, dispersing, emulsifying, homogenizing, vacuum, transferring, heating and cooling etc

Mettler-Toledo load cell (option)

Flow meter automation for feeding liquid oil and water (option)

Pressure vessel design for different steam pressure (option)

SIP is available upon request (option)

Different power supply acceptable (option)

After finish one batch, customer can use rotor pump for material out.
