CIP Cleaning system (Cleaning in place)

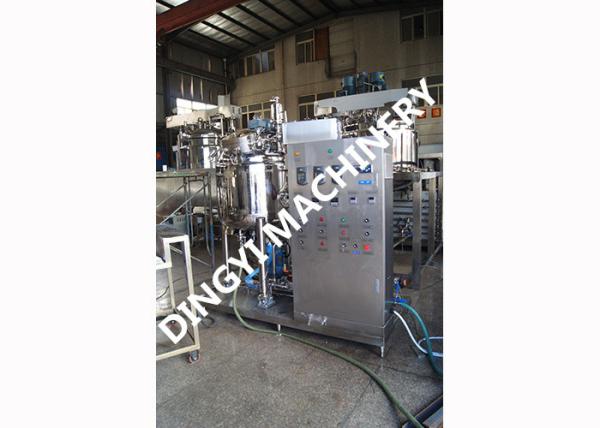

CIP System cleaning unit
1. Cip System:It is the tank-cleaning dvice for the rapid
automation process. Pre-set system contrls the cleaning rprocess
from the beginning to the end.It is simple, fast, and cleans
thoroughly. The sanitary valves concerns as well as structure.
2. Equipment:Acid tank, alkaine tank, and warm warer tank one for
each, the recycing of detergents and adjustment of temoerarute, and
liquid level are preset.
CIP cleaning device as neither decomposition production equipment,
and can be used simple operation mether safety automatic cleaning
system, almost was introduced to all the food, beverage and
pharmaceutical and other factories.
CIP cleaning system can clean machine, tanks, pipeline.
CIP cleaning system:
1. can make the production plan rationalization and production
capacity.
2. compared with the hand, not only the differences due to the
operators can also affect cleaning effect, improving the product
quality.
3. can prevent the dangers of the claning, save labour.
4. can save cleaning agents, steam, water and product cost.
5. can increase the service lift of the machine parts.
6. CIP cleaning system have manual type, semi-automatic and
automatic type operating to choose.
| CIP Tank size | 100L-10000L |
| CIP tank type | Alkali tank, acid tank, hot water, |
| Cleaning recycles | circuit |
| Heating method | Coil pipes inside, p |
| Automatic types and characteristics | Full Automatic | 1. Flow rate auto control;
2. Temperature auto control;
3. Auto compensate the cip liquid level;
4. Auto compensate the liquid concentrate;
5. Cleaning liquids auto transfer;
6. Auto alarm |
| Semi-automatic | 1. Temperature auto control
2. Electrical control with manual operate the other matters. |
| Manual | Manual operate on the cleaning process |
