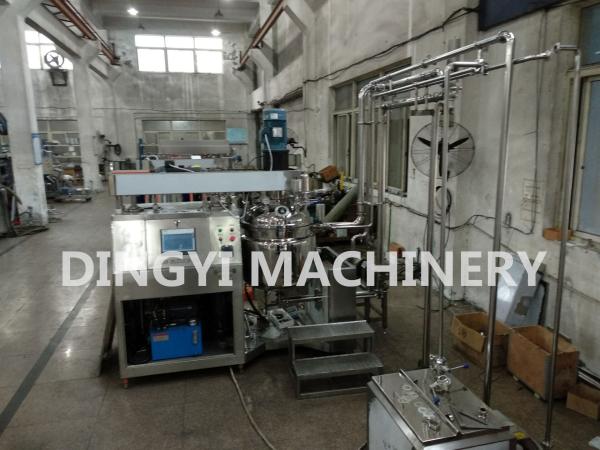

water bath heating Suppository Vacuum Homogenizer Mixer with PLC
control
Vacuum emulsifying equipment including:
· Vacuum emulsifying main machine
· Substrate dissolving tank and hot water tank with heat preservation
· Hot water circulating system
· Material auto feeding system(use heat preservation pipe )
· Vacuum system
· Hydraulic system
· Control system
· Platform made from SS304(option)
Vacuum emulsifying main machine:
· Slow mixer 0-40rpm with PTFE scraper
· Homogenizer 0-1800rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.093Mpa to 0.1Mpa, jacket 0.1Mpa for hot water
(standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel pipe
filter, solid material inlet, vacuum inlet, breaking vacuum inlet,
sight glass, CIP cleaning head, discharging port, dustproof
respirator.
Oil pre-mixing tank
· High shear mixer 960rpm
· Heating by hot water
· Pipeline for material transfer to main emulsifying machine
Vacuum system:
· Water ring type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump
Product description
Suppository Vacuum Emulsifier as a semi solid equipment are
suitable for the pharmaceutical industries for making
suppository,cream, ointment.
Our company is a scientific enterprise is specialized in research
and development; Production and management of cosmetic, food and
pharmaceutical machinery. It has complete machining equipment,
perfect technological flow, powerful technical force, excellent
product development and design ability as well as rich production
experience.
Features:
The vacuum emulsifier is professionally designed according to the
ointment manufacturing process of cosmetics and ointments etc.
products through introducing advanced technology from abroad.
The machine unit is featured by simple operation, stable
performance, and good homogenizing performance, high production
efficiency, convenient cleaning, reasonable structure, small land
area and high automatic degree etc.
· Capacity:5L-500L
· Material: material contact part SS316L, material non-contact part
SS304.
· Customized service: to provide and design total solution as per
customer URS
Options of vacuum emulsifier machine
Fixed cover by flanges design for tight budget customers
Contra mixing part or other slow agitator designs available
Frame type slow agitator for oil pre-mixer
Delta, Schneider or Siemens PLC for automation of mixing,
dispersing, emulsifying, homogenizing, vacuum, transferring,
heating and cooling etc
Mettler-Toledo load cell (option)
Flow meter automation for feeding liquid oil and water (option)
Pressure vessel design for different steam pressure (option)
SIP is available upon request (option)
Different power supply acceptable (option)
After finish one batch, customer can use rotor pump for material
out.
| Homogenizer | slow mixer | length | width | height | Max. height | total pwoer |
| SRJ-200L | 5.5kw/1800rpm | 1.5kw/10-40rpm | 2500 | 2380 | 2200 | 2900mm | 12Kw |
| SRJ-350L | 7.5kw/1800rpm | 2.2kw/10-40rpm | 2800 | 2600 | 2550 | 3400mm | 19Kw |
