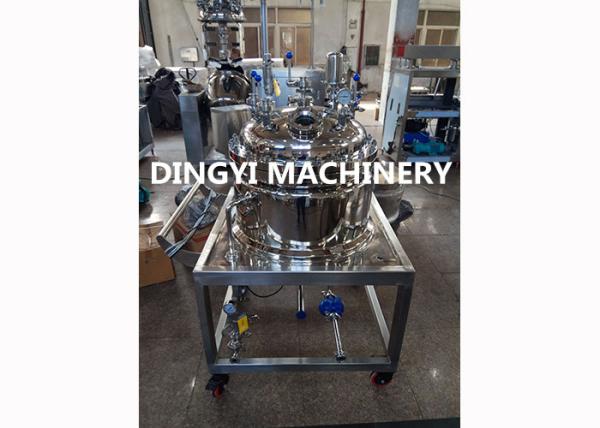

stainless steel 316L cream storage tank for soft gel with
electrical heating and moving
Structural characteristics
1. Adopt single layer ,double layer ,three layer insulated
jacketed.
2. All food grade hygienic stainless steel.
3. Humanized structure design and easy operate.
4. Transition area of interior wall on tank adopts arc for
transition to ensure no dead comer of sanitation.
Volume:200-350L or Customization
Tank body:Structure of 3 layers: chamber, jacket, insulating layer.
Top cover:the lid can open with sealing ring.
Top lid nozzle list: material inlet, respirator, sight glass with
lamp. tank body with heating water inlet and outlet, bottom with
material outlet, 1 nos temperature sensor, wheels.
Material contact part SS316L, Non-material contactpart SS304.
Applications
Wine, Beer Juices Food & Beverage Pharmaceutical
Biotechnology & Laboratory Medical & Medical Device Chemical
Industry Painting Industrial
| Stainless steel storage tank |
| Material: | SS304 or SS316L |
| Design Pressure: | -1 -2 Bar (g) |
| Work Temperature: | 0-100 °C |
| Volumes: | 50~500L |
| Construction : | Vertical type |
| Jacket type : | jacket |
| Structure : | Single layer vessel, vessel with jacket, vessel with jacket and
insulation |
| Heating or cooling function | According to the heating or cooling requirement , the tank will have jacket for required function |
| Optional Motor: | ABB, SEW or Chinese brand |
| Surface Finish: | Mirror Polish or Matt polish |
| Standard components : | open lid, sight glass , CIP ball |
| Optional components : | Vent filter, Temp. Gauge, display on the gauge directly on the
vessel Temp sensor PT100, digital display on the control cabinet by
instrument Temp sensor with control for heating and cooling Level gauge with
digital
|
| Applications: | Food & Beverage Pharmaceutical Biotechnology & Laboratory Medical &Medical Device Chemical Industry Painting |
