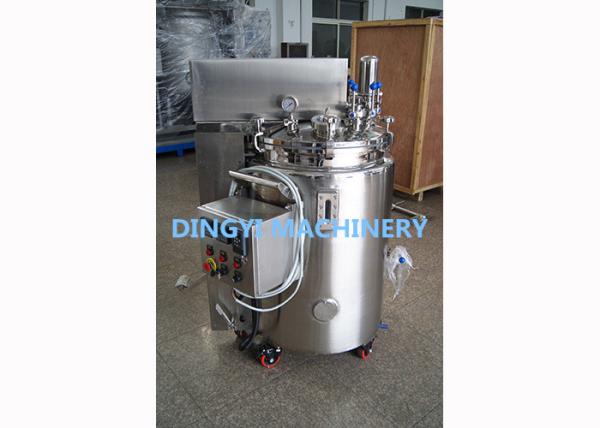

stainless steel 316L cream storage tank for honey with electrical
heating
Structural characteristics
Introduction of honey storage tank
This vacuum honey storage used to remove the foam in the honey,
remove the air in the honey, filter the honey and heat the honey to
make it stay liquid state and prolong the shelf date of the honey.
It is part of the whole line for the honey processing, which
includes the honey concentrate machine, honey storage tank, honey
mixing tank
Features of honey storage tank
1. Materials are all sanitary SUS304 stainless steel .
2. Humanized structure design and easy to operate.
3. Adopts arc for transition to ensure no dead angle of sanitary.
4. General accessories: Quick open manhole, 360 degree rotation CIP
spraying ball,
Asepsis respirator, Adjustable legs(Customized if needed),
Thermometer , Liquid level meter, Blender, Jacket, View lamp,
Sampling valve and ladder(Customized if needed)
5. Automatic temperature control device. You can set the heating
temperature, when the honey reach the setting temperature, it will
stop heating. When the temperature is lower than setting
temperature, it will start heating again.
6. Three-deck,jacketed type, retain heat after heating.
1. Adopt single layer ,double layer ,three layer insulated
jacketed.
2. All food grade hygienic stainless steel.
3. Humanized structure design and easy operate.
4. Transition area of interior wall on tank adopts arc for
transition to ensure no dead comer of sanitation.
Volume:200-350L or Customization
Tank body:Structure of 3 layers: chamber, jacket, insulating layer.
Top cover:the lid can open with sealing ring.
Top lid nozzle list: material inlet, respirator, sight glass with
lamp. tank body with heating water inlet and outlet, bottom with
material outlet, 1 nos temperature sensor, wheels.
Material contact part SS316L, Non-material contactpart SS304.
Applications
Wine, Beer Juices Food & Beverage Pharmaceutical
Biotechnology & Laboratory Medical & Medical Device Chemical
Industry Painting Industrial
| Stainless steel storage tank |
| Material: | SS304 or SS316L |
| Design Pressure: | -1 -2 Bar (g) |
| Work Temperature: | 0-100 °C |
| Volumes: | 50~500L |
| Construction : | Vertical type |
| Jacket type : | jacket |
| Structure : | Single layer vessel, vessel with jacket, vessel with jacket and
insulation |
| Heating or cooling function | According to the heating or cooling requirement , the tank will have jacket for required function |
| Optional Motor: | ABB, SEW or Chinese brand |
| Surface Finish: | Mirror Polish or Matt polish |
| Standard components : | open lid, sight glass , CIP ball |
| Optional components : | Vent filter, Temp. Gauge, display on the gauge directly on the
vessel Temp sensor PT100, digital display on the control cabinet by
instrument Temp sensor with control for heating and cooling Level gauge with
digital
|
| Applications: | Food & Beverage Pharmaceutical Biotechnology & Laboratory Medical &Medical Device Chemical Industry Painting |
